LIVE Web camera Streaming in Web Browser using RTSP protocol and ASP.NET

Streaming live video from an RTSP camera in a web browser using ASP.NET requires converting the RTSP stream into a format that browsers can natively support, such as HLS (HTTP Live Streaming) or WebRTC, as most browsers do not natively support RTSP streams.

Here's a step-by-step detailed guide:

1. Understanding the Workflow

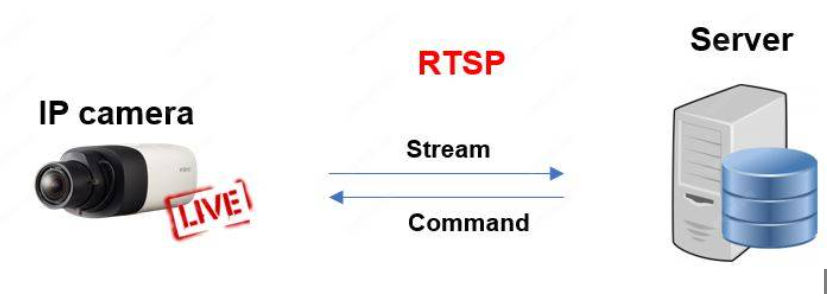

1. RTSP Stream: The live video feed from the camera is available in RTSP protocol.
2. Transcoding: Use a tool like FFmpeg or a media server like GStreamer, VLC, or Wowza to transcode the RTSP stream into HLS or WebRTC.
3. ASP.NET Backend: Manage and serve the stream or its metadata (e.g., the HLS playlist or WebRTC signaling).
4. Browser Frontend: Use HTML5 <video> tag for HLS or a WebRTC player (e.g., simple-peer) for WebRTC.

2.

1. Setup Requirements

Install Prerequisites

1. FFmpeg:

   • Download from FFmpeg official site and add it to your system's PATH.
   • This tool will convert RTSP to HLS.

2. Visual Studio:

   • Install ASP.NET Core development environment.

3. RTSP Camera:

   • Obtain the RTSP URL of your camera.

4. hls.js (Frontend Player):

   • Include the hls.js library for HLS playback in browsers that do not support it natively.

---

2. RTSP to HLS Conversion

Use FFmpeg to convert the RTSP stream to HLS format.

Command to Run FFmpeg:

ffmpeg -i rtsp://<camera-ip>:<port>/<stream> \

    -f hls \

    -hls_time 2 \

    -hls_list_size 3 \

    -hls_wrap 5 \

    -hls_segment_filename "wwwroot/streams/segment_%d.ts" \

    wwwroot/streams/stream.m3u8

Parameters:

• -i: RTSP URL of the camera.
• -f hls: Specifies the HLS output format.
• -hls_time 2: Sets the duration of each HLS segment (in seconds).
• -hls_list_size 3: Limits the number of playlist entries.
• -hls_wrap 5: Rotates segment files to avoid storage issues.
• wwwroot/streams/: Output directory for .m3u8 and .ts files.

3. Create ASP.NET Core Application

Step 1: Create a New Project

1. Open Visual Studio.
2. Create a new ASP.NET Core Web Application.
3. Select Empty Template and click Create.

---

Step 2: Configure Static Files for HLS

Add the HLS files (.m3u8 and .ts) to the wwwroot/streams directory.

1. Open Program.cs and configure static file support:var builder = WebApplication.CreateBuilder(args);

   var app = builder.Build();

   // Enable Static Files for Serving HLS

   app.UseStaticFiles();

   app.MapGet("/", () => Results.Redirect("/index.html"));

   app.Run();

2. Ensure HLS files are stored in wwwroot/streams.

Step 3: Add Controller for Stream API

Create a controller to serve the stream files dynamically.

1. Add a new folder Controllers and create StreamController.cs:



   using Microsoft.AspNetCore.Mvc;

   [Route("api/stream")]
   public class StreamController : Controller
   {
       [HttpGet("{fileName}")]
       public IActionResult GetStream(string fileName)
       {
           var filePath = Path.Combine(Directory.GetCurrentDirectory(), "wwwroot", "streams", fileName);

           if (!System.IO.File.Exists(filePath))
               return NotFound();

           var contentType = fileName.EndsWith(".m3u8") ? "application/vnd.apple.mpegurl" : "video/MP2T";
           return PhysicalFile(filePath, contentType);
       }
   }


2. This API serves .m3u8 and .ts files dynamically based on the request.

Step 3: Add Controller for Stream API

Create a controller to serve the stream files dynamically.

1. Add a new folder Controllers and create StreamController.cs:


   using Microsoft.AspNetCore.Mvc;

   [Route("api/stream")]
   public class StreamController : Controller
   {
       [HttpGet("{fileName}")]
       public IActionResult GetStream(string fileName)
       {
           var filePath = Path.Combine(Directory.GetCurrentDirectory(), "wwwroot", "streams", fileName);

           if (!System.IO.File.Exists(filePath))
               return NotFound();

           var contentType = fileName.EndsWith(".m3u8") ? "application/vnd.apple.mpegurl" : "video/MP2T";
           return PhysicalFile(filePath, contentType);
       }
   }


2. This API serves .m3u8 and .ts files dynamically based on the request.

---

4. Frontend: HTML Player for Streaming

Create a basic HTML page to play the stream.

HTML File (wwwroot/index.html):



<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Live Camera Stream</title>
    <script src="https://cdn.jsdelivr.net/npm/hls.js@latest"></script>
</head>
<body>
    <div class="container">
        <h1>Live Camera Stream</h1>
        <video id="videoPlayer" controls autoplay style="width: 100%; max-width: 800px;">
            Your browser does not support the video tag.
        </video>
    </div>

    <script>
        document.addEventListener("DOMContentLoaded", () => {
            const video = document.getElementById("videoPlayer");
            const videoSrc = "/streams/stream.m3u8";

            if (Hls.isSupported()) {
                const hls = new Hls();
                hls.loadSource(videoSrc);
                hls.attachMedia(video);
                hls.on(Hls.Events.MANIFEST_PARSED, () => {
                    video.play();
                });
            } else if (video.canPlayType('application/vnd.apple.mpegurl')) {
                video.src = videoSrc;
                video.addEventListener('loadedmetadata', () => {
                    video.play();
                });
            } else {
                console.error("HLS is not supported in this browser.");
            }
        });
    </script>
</body>
</html>

---

5. Run the Application

1. Start the FFmpeg command to convert RTSP to HLS.
2. Run the ASP.NET Core application in Visual Studio.
3. Navigate to http://localhost:5000/ in your browser.
4. The browser should display the live video stream.

---

6. Deploy the Application

1. Deploy the application to IIS or a cloud service like Azure App Service.
2. Ensure the FFmpeg process runs continuously on the server to transcode RTSP streams.

---

7. Optional: Automate FFmpeg with ASP.NET

You can automate the FFmpeg process using Process.Start in C#:

Code to Start FFmpeg:



using System.Diagnostics;

public class FfmpegService
{
    public void StartTranscoding()
    {
        var ffmpegPath = @"C:\path\to\ffmpeg.exe";
        var arguments = @"-i rtsp://<camera-ip>:<port>/<stream> -f hls -hls_time 2 -hls_list_size 3 -hls_wrap 5 -hls_segment_filename ""wwwroot/streams/segment_%d.ts"" wwwroot/streams/stream.m3u8";

        var processStartInfo = new ProcessStartInfo
        {
            FileName = ffmpegPath,
            Arguments = arguments,
            RedirectStandardOutput = true,
            UseShellExecute = false,
            CreateNoWindow = true
        };

        Process.Start(processStartInfo);
    }
}

Call this method in the application startup.

---

8. Additional Considerations

• Performance: For multiple cameras, ensure the server has sufficient resources.
• Security: Protect the stream API if needed.
• Low Latency: Consider WebRTC for lower latency if required.

Thank You
